Innolux 15Inch Industrial LCD Display Panel G150XJE-E03 with 1024*768 Pixels 450 cd/m² Brightness and 70K Hours Working Life

Nome da marca:	Innolux
Número do modelo:	G121AGE-L03
MOQ:	10 unidades
preço:	negotiable
Condições de pagamento:	T/T,W,Western Union,MoneyGram
Capacidade de fornecimento:	3000pcs por semana

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

Rohs,CE,FCC

Qualidade:

Original novo

Pacote:

Embalagem industrial original

Resolução:

1024*768pixels

Estilo:

IPS de 30 pinos

Brilho:

450cd/m2

Cor:

262 mil

Taxa de contraste:

2500:1

vida profissional:

horas 70K

Detalhes da embalagem:

Embalagem industrial

Destacar:

1024*768 Pixels Industrial LCD Display

450 cd/m² Brightness LCD Display Panel

70K Hours Working Life TFT-LCD Display

Descrição do produto

Innolux 15-Inch Industrial LCD Display Panel G150XJE-E03

15-inch diagonal industrial LCD display panel with 1024*768 XGA resolution, 450 cd/m² brightness, and 85-pin eDP interface. Designed for gaming and industrial applications.

Product Overview

The Innolux G150XJE-E03 is a 15.0-inch a-Si TFT-LCD display panel featuring an integrated WLED backlight system with LED driver. This industrial-grade panel operates within a wide temperature range of -20°C to 70°C and offers excellent durability with a backlight life of ≥70,000 hours.

Key Features

• 15.0-inch diagonal display with 1024*768 XGA resolution

• High brightness of 450 cd/m² for clear visibility

• Wide operating temperature range: -20°C to 70°C

• Long-life WLED backlight (≥70,000 hours)

• eDP 1.2 interface with 30-pin connector

• Antiglare hard coating (3H) surface treatment

• 2500:1 contrast ratio for sharp image quality

Technical Specifications

Brand	Innolux
Model Number	G150XJE-E03
Diagonal Size	15.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)*768 (XGA), 85 PPI
Active Area	304.128 * 228.096 mm
Outline Dimensions	326.5 * 253.5 * 9.6 mm (HVD)
Luminance	450 cd/m² (Typical)
Contrast Ratio	2500:1 (Typical)
Viewing Angle	88/88/88/88 (CR≥10)
Response Time	16/7 ms (Typical, Tr/Td)
Color Depth	262K/16.7M, 72% NTSC
Backlight	WLED, 70K hours, With LED Driver
Interface	eDP (1 Lane), eDP1.2, 30-pin Connector
Operating Voltage	3.3V (Typical)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 70°C
Weight	942g (Typical) / 980g (Maximum)

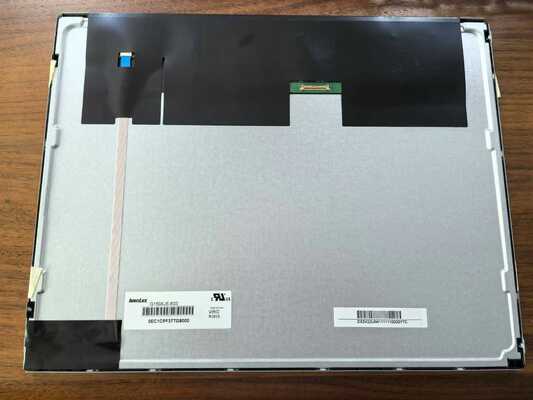

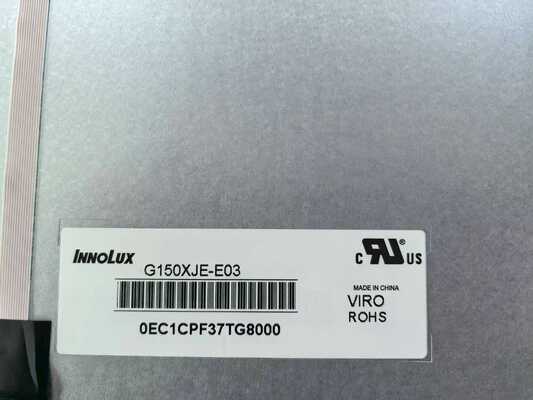

Product Image

Important Note: This model entered mass production in Q1 2021 and is now discontinued. For integration into your products, we strongly recommend contacting Innolux or their distributor for the latest production and specification details. The production status information is for reference only and should not be used as the sole basis for decision-making.
